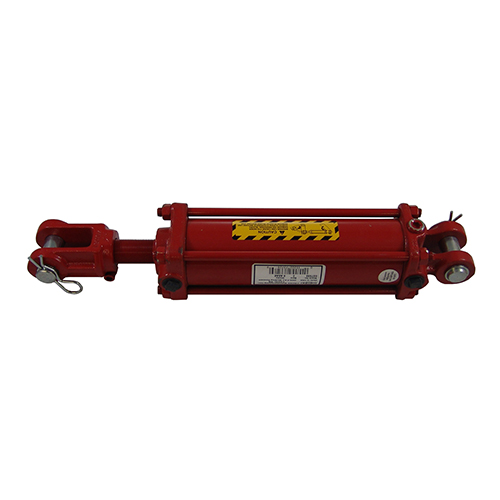

C95-0010 - 3" X 8" X 1-1/4" HYDRAULIC CYLINDER - 2500 PSI

Categories
Show +
C95-0010 - 3' X 8' X 1-1/4' HYDRAULIC CYLINDER - 2500 PSI
Item #: C95-0010
$266.13
Call for Availability

Description

  • 3" Bore
  • 8" Stroke
  • 20-1/4" Retracted Length
  • 28-1/4" Extended Length
  • 1-1/4" Rod Diameter
  • 1/2" NPTF Port Size
  • 1" Pin Diameter
  • 2500 PSI

Induction hardened and hard chrome plated rods

O-Ring seals throughout with polyurethane back-ups on piston and rods

High tensile rie rods - Ductile base and rod clevis mountings

Rod threaded at full diameter on 1.25" (31.75 mm) rods. (Clevis end only)

Cylinder barrels honed to micro-finish

Ports in line with pin holes on base and rod end clevis

Double ported base on 2" (50.8 mm) through 5" (127 mm) cylinders single port on rod end.
